Hollow Section

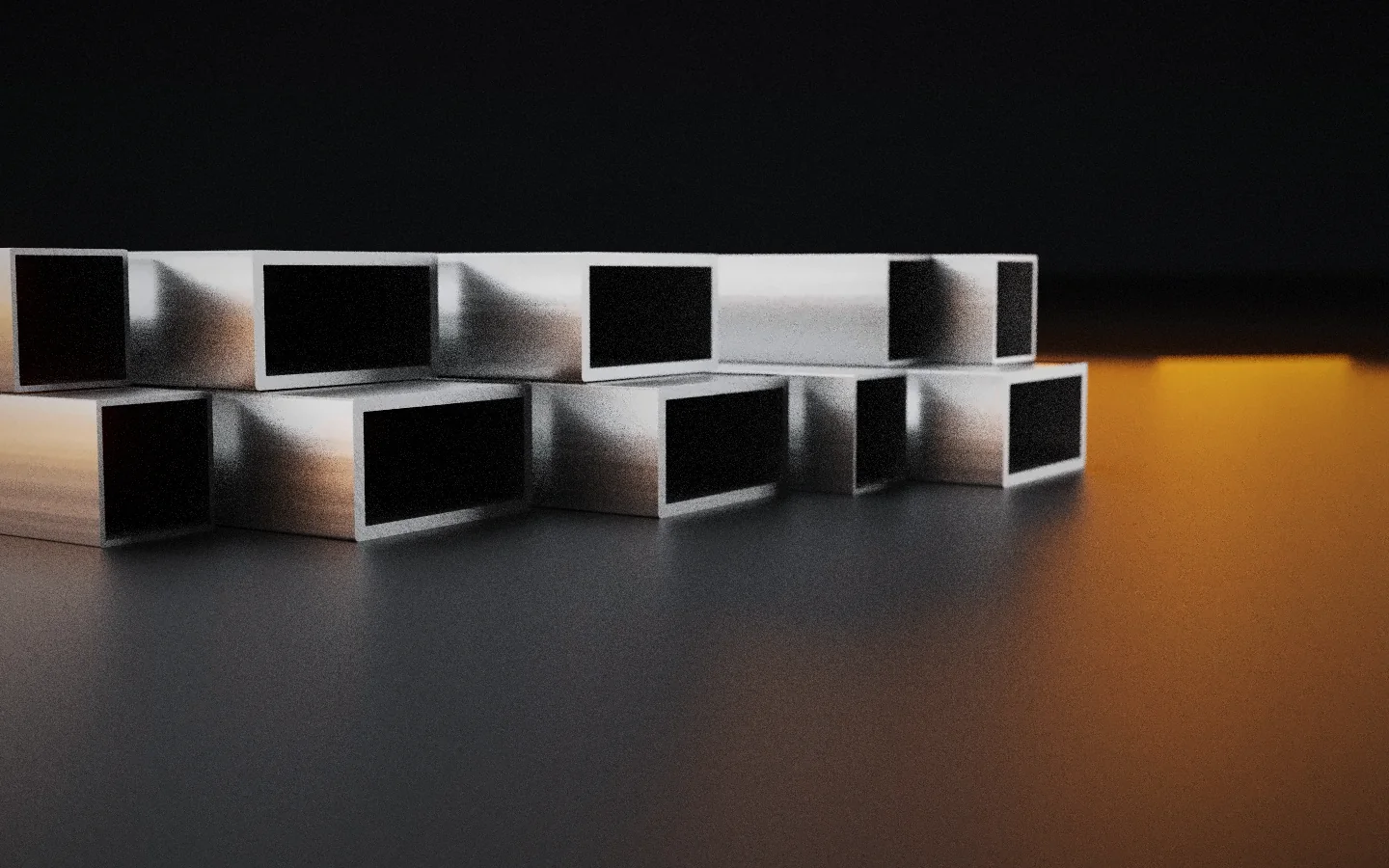

Rectangular tube in three sizes, each in three wall thicknesses, and square tube in two sizes.

Section profile. All dimensions in mm.

Rectangular Tube
Section no.	A (mm)	B (mm)	T (mm)	Weight range (kg per 12 ft)
1501	36.10	24.40	0.65	0.750 – 0.850
1502	36.10	24.40	0.68	0.850 – 1.000
1503	36.10	24.40	0.90	1.000 – 1.200
1506	50.00	25.40	0.65	0.800 – 1.000
1507	50.00	25.40	0.75	1.000 – 1.200
1508	50.00	25.40	0.90	1.200 – 1.400
1511	63.50	38.10	0.75	1.350 – 1.550
1512	63.50	38.10	1.20	2.000 – 2.200
1513	63.50	38.10	1.75	2.900 – 3.100

A, B = overall dimensions. T = wall thickness. Weight range is for one 12 ft (3.66 m) length.

Section profile. All dimensions in mm.

Square Tube
Section no.	A (mm)	T (mm)	Weight range (kg per 12 ft)
1551	19.00	1.50	1.100 – 1.300
1552	25.40	2.20	1.500 – 1.700

A = overall dimension. T = wall thickness. Weight range is for one 12 ft (3.66 m) length.

Tell us the section and the quantity.

Quote the section number and wall thickness from the product page, or describe what you need. We reply with weight, availability and a delivery date.
