35 aluminium profiles in 79 section numbers, across 7 product families. Every section is listed with its drawing, wall thickness and weight range.

Product families

Choose a family to open its section drawings and tables.

Architectural profiles

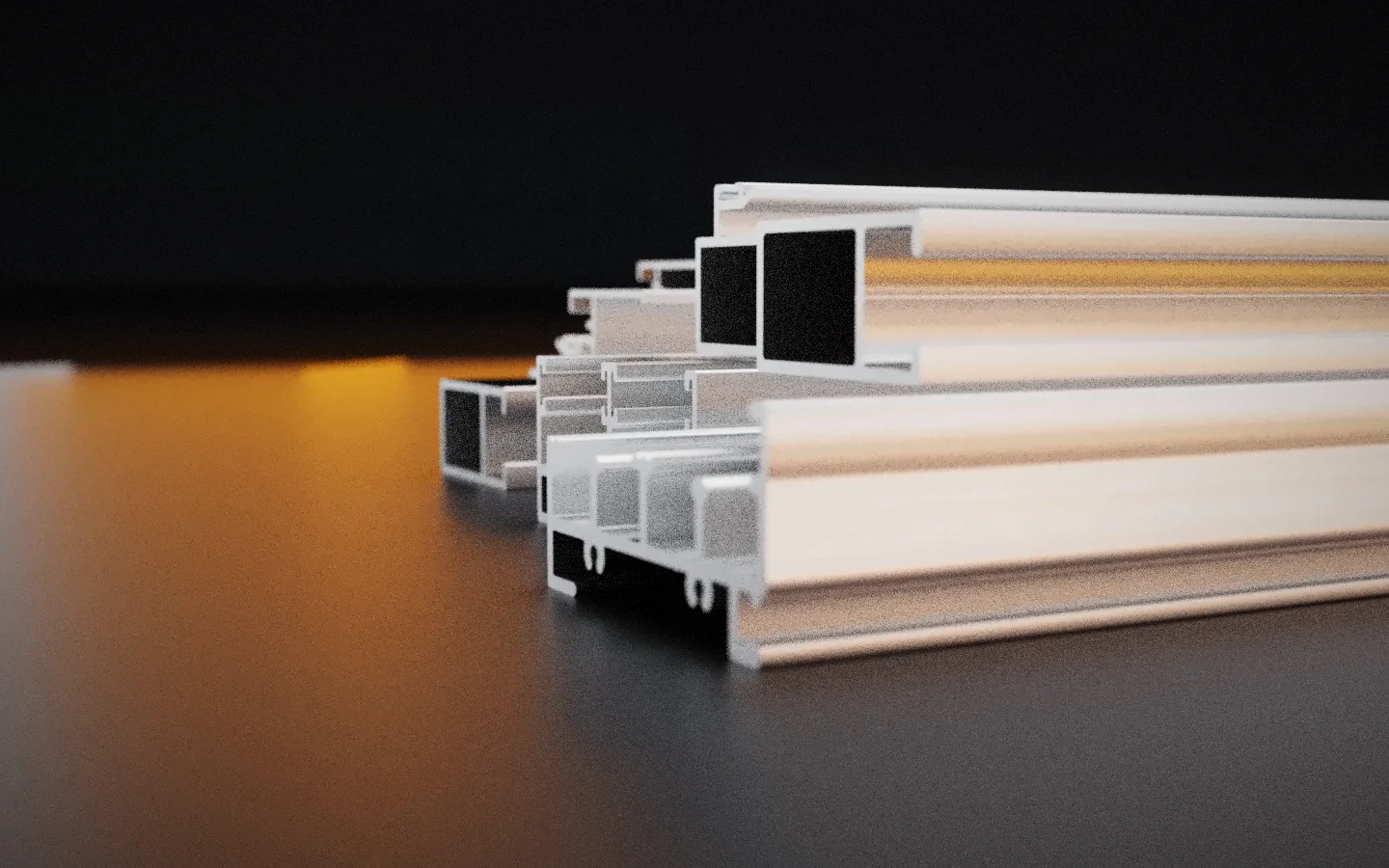

Sliding Window

Top and bottom tracks in two-track and three-track versions, with A sections, H sections and interlocks.

14 profiles, 35 section numbers

Architectural profiles

Door & Partition

Single and double partition sections, door top, middle, bottom and vertical sections, and a glazing clip.

8 profiles, 20 section numbers

Architectural profiles

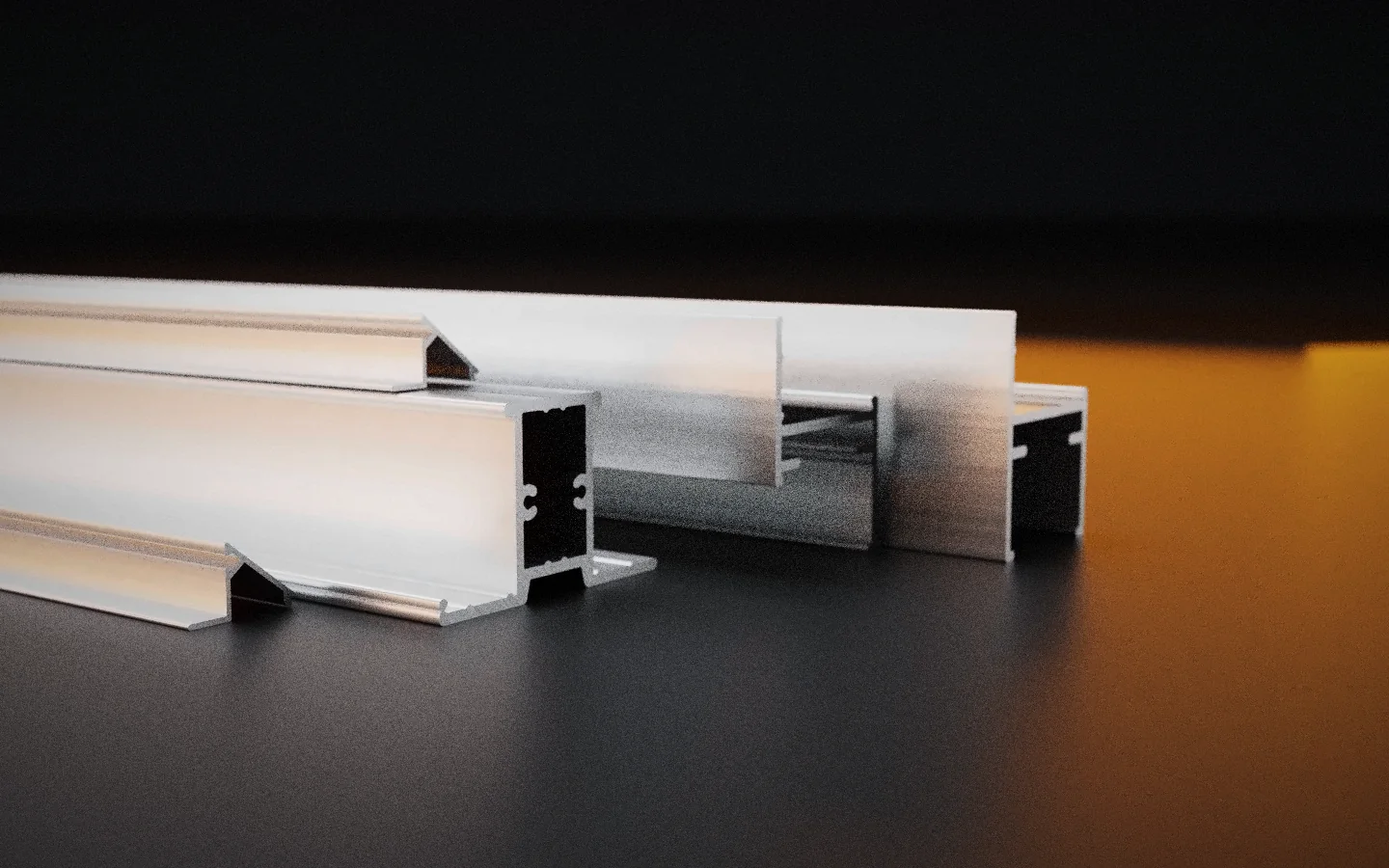

Casement Window

Outer frame, shutter frame, mullion and clip in the 34 series, and an outer frame in the 40 series.

5 profiles, 5 section numbers

Architectural profiles

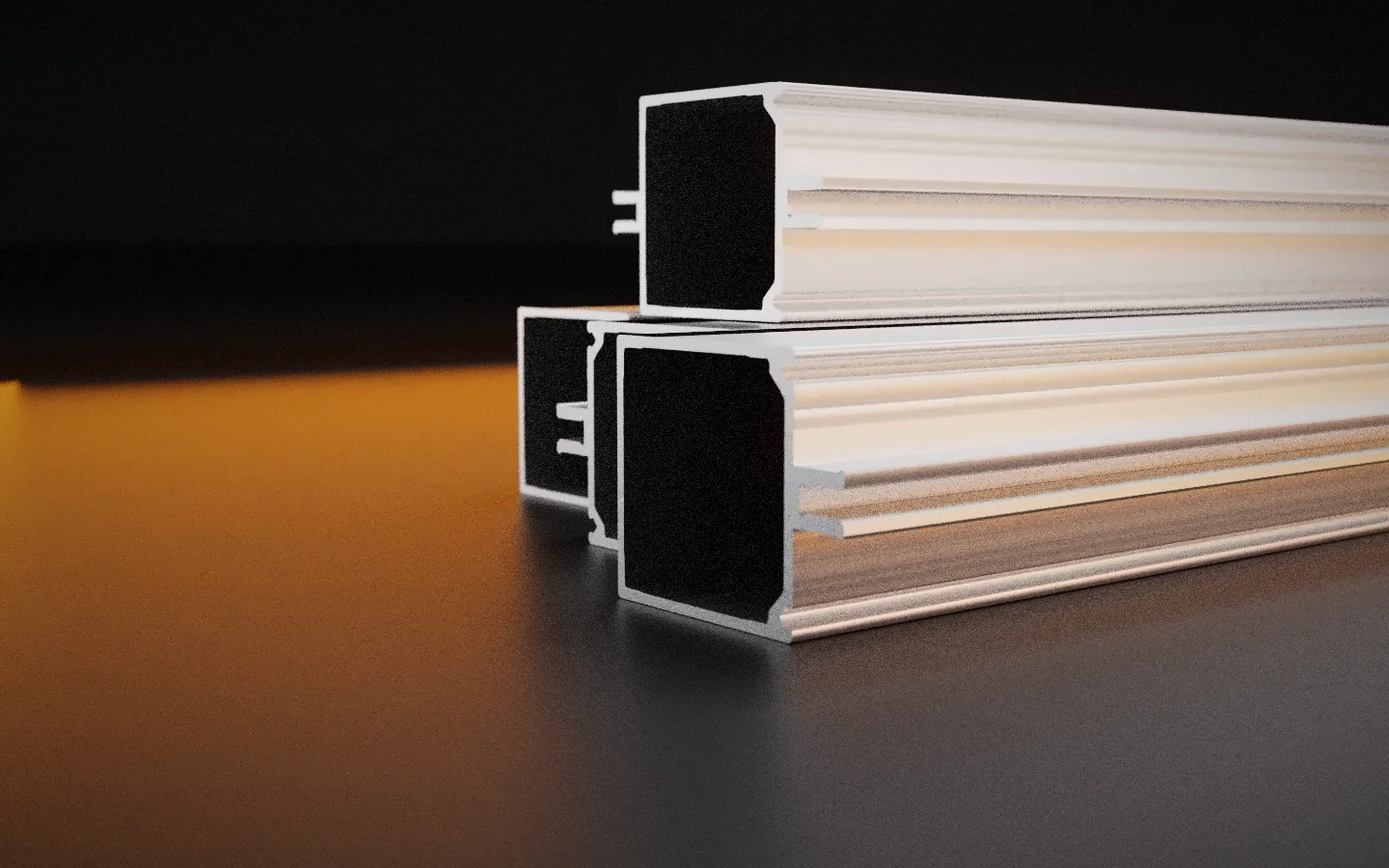

Curtain Wall

Two framing sections, 1423 and 1426.

2 profiles, 2 section numbers

Architectural profiles

Hollow Section

Rectangular tube in three sizes and nine sections, and square tube in two.

2 profiles, 11 section numbers

Industrial profiles

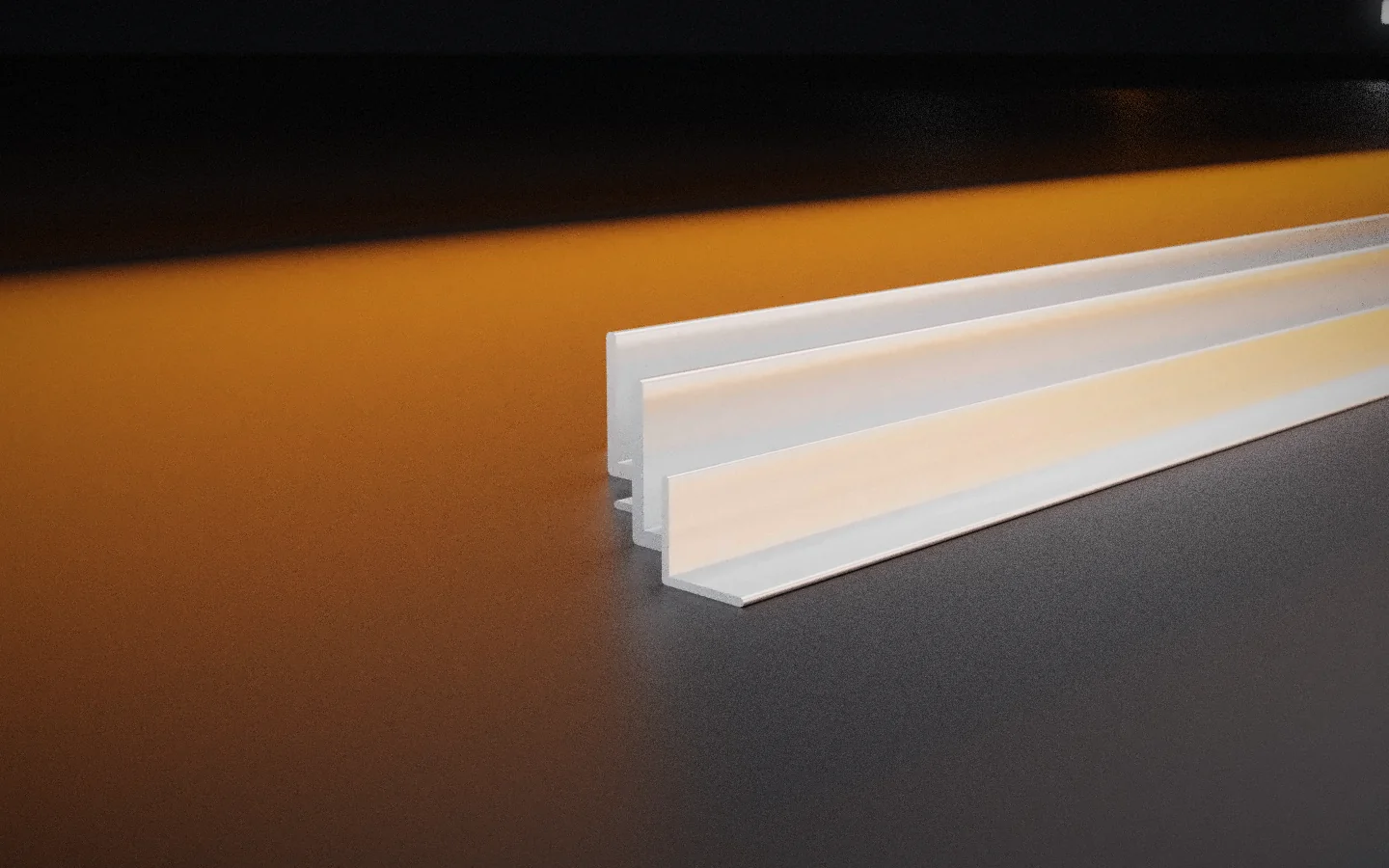

Angles

Equal angle and unequal angle, two sections of each.

2 profiles, 4 section numbers

Architectural profiles

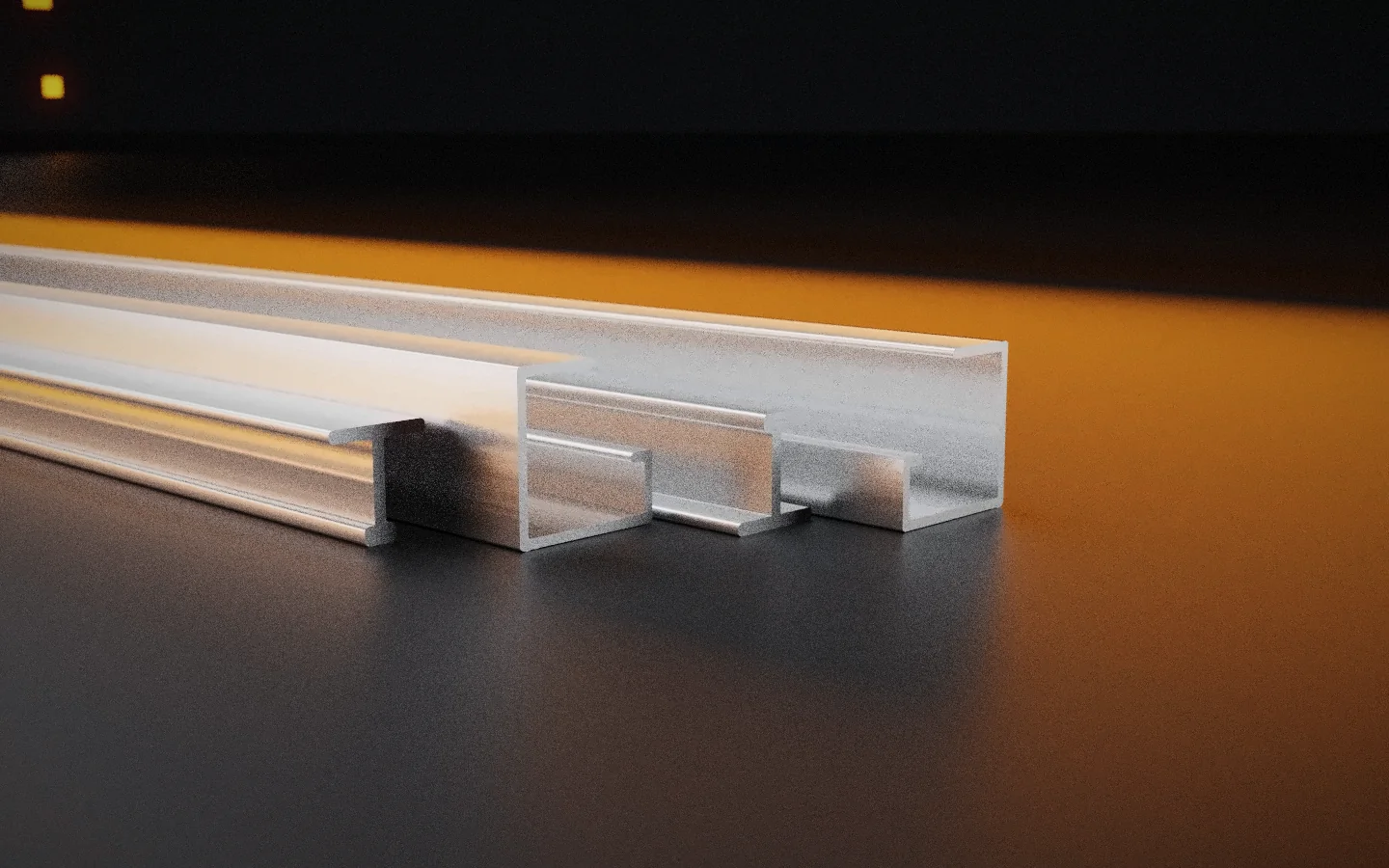

Tee & G Section

A bulb tee and a G section.

2 profiles, 2 section numbers

Every section number

Already know the number? Search for it here, then open the drawing.

Find a section

Showing all 79 section numbers.

All section numbers
Section no.	Profile	Family	T (mm)	Weight range (kg per 12 ft)
1801	Two Track Top, 18 mm series	Sliding Window	0.80	1.700 – 1.900
1821	Two Track Bottom, 18 mm series	Sliding Window	0.80	2.100 – 2.300
1811	Three Track Top, 18 mm series	Sliding Window	0.80	2.250 – 2.450
1831	Three Track Bottom, 18 mm series	Sliding Window	0.80	2.300 – 2.500
1841	A Section, 18 mm series	Sliding Window	0.90	1.100 – 1.300
1851	H Section, 18 mm series	Sliding Window	0.90	1.100 – 1.300
1861	Interlock, 18 mm series	Sliding Window	0.90	1.200 – 1.400
2001	Two Track Top, 20 mm series	Sliding Window	0.80	1.700 – 1.900
2002	Two Track Top, 20 mm series	Sliding Window	1.00	1.900 – 2.100
2003	Two Track Top, 20 mm series	Sliding Window	1.15	2.200 – 2.400
2005	Two Track Top, 20 mm series	Sliding Window	1.50	2.700 – 2.950
2021	Two Track Bottom, 20 mm series	Sliding Window	0.85	2.000 – 2.200
2022	Two Track Bottom, 20 mm series	Sliding Window	1.00	2.200 – 2.400
2023	Two Track Bottom, 20 mm series	Sliding Window	1.15	2.500 – 2.700
2025	Two Track Bottom, 20 mm series	Sliding Window	1.50	3.000 – 3.300
2011	Three Track Top, 20 mm series	Sliding Window	0.85	2.400 – 2.600
2012	Three Track Top, 20 mm series	Sliding Window	1.00	2.600 – 2.900
2013	Three Track Top, 20 mm series	Sliding Window	1.15	3.000 – 3.300
2015	Three Track Top, 20 mm series	Sliding Window	1.50	3.700 – 4.100
2031	Three Track Bottom, 20 mm series	Sliding Window	0.85	2.800 – 3.100
2032	Three Track Bottom, 20 mm series	Sliding Window	1.00	3.100 – 3.400
2033	Three Track Bottom, 20 mm series	Sliding Window	1.15	3.400 – 3.800
2035	Three Track Bottom, 20 mm series	Sliding Window	1.50	4.200 – 4.500
2041	A Section, 20 mm series	Sliding Window	0.90	1.050 – 1.200
2042	A Section, 20 mm series	Sliding Window	1.10	1.200 – 1.400
2043	A Section, 20 mm series	Sliding Window	1.30	1.400 – 1.600
2044	A Section, 20 mm series	Sliding Window	1.40	1.600 – 1.800
2045	A Section, 20 mm series	Sliding Window	1.50	1.800 – 2.000
2051	H Section, 20 mm series	Sliding Window	0.90	1.100 – 1.300
2052	H Section, 20 mm series	Sliding Window	1.10	1.250 – 1.500
2055	H Section, 20 mm series	Sliding Window	1.50	1.700 – 1.900
2061	Interlock, 20 mm series	Sliding Window	0.85	1.200 – 1.350
2062	Interlock, 20 mm series	Sliding Window	1.00	1.400 – 1.600
2063	Interlock, 20 mm series	Sliding Window	1.15	1.600 – 1.750
2065	Interlock, 20 mm series	Sliding Window	1.50	2.100 – 2.300
1002	Single Partition	Door & Partition	0.90	1.500 – 1.700
1003	Single Partition	Door & Partition	1.30	2.000 – 2.300
1021	Single Partition	Door & Partition	0.80	1.700 – 1.900
1022	Single Partition	Door & Partition	0.90	1.900 – 2.100
1023	Single Partition	Door & Partition	1.00	2.100 – 2.400
1024	Single Partition	Door & Partition	1.15	2.400 – 2.600
1072	Double Partition	Door & Partition	0.90	1.500 – 1.700
1073	Double Partition	Door & Partition	1.30	2.000 – 2.300
1091	Double Partition	Door & Partition	0.80	1.700 – 1.900
1092	Double Partition	Door & Partition	0.90	1.900 – 2.100
1093	Double Partition	Door & Partition	1.00	2.100 – 2.400
1094	Double Partition	Door & Partition	1.15	2.400 – 2.600
1181	Door Top	Door & Partition	1.35	2.500 – 2.700
1141	Door Middle Single	Door & Partition	1.30	2.300 – 2.500
1161	Door Middle Double	Door & Partition	1.30	2.300 – 2.500
1221	Door Bottom	Door & Partition	1.45	4.100 – 4.400
1202	Door Vertical	Door & Partition	1.30	2.450 – 2.650
1203	Door Vertical	Door & Partition	1.50	3.300 – 3.600
1211	Door Vertical	Door & Partition	1.45	4.100 – 4.400
1251	Glazing Clip	Door & Partition	0.50	0.220 – 0.250
1301	Outer Frame, 34 series	Casement Window	1.50	1.650 – 1.900
1305	Shutter Frame, 34 series	Casement Window	1.50	1.350 – 1.600
1310	Mullion, 34 series	Casement Window	1.50	2.400 – 2.600
1315	Clip, 34 series	Casement Window	0.85	0.480 – 0.550
1321	Outer Frame, 40 series	Casement Window	2.30	2.100 – 2.300
1423	Curtain Wall 1423	Curtain Wall	2.00	4.500 – 4.700
1426	Curtain Wall 1426	Curtain Wall	1.50	4.100 – 4.300
1501	Rectangular Tube	Hollow Section	0.65	0.750 – 0.850
1502	Rectangular Tube	Hollow Section	0.68	0.850 – 1.000
1503	Rectangular Tube	Hollow Section	0.90	1.000 – 1.200
1506	Rectangular Tube	Hollow Section	0.65	0.800 – 1.000
1507	Rectangular Tube	Hollow Section	0.75	1.000 – 1.200
1508	Rectangular Tube	Hollow Section	0.90	1.200 – 1.400
1511	Rectangular Tube	Hollow Section	0.75	1.350 – 1.550
1512	Rectangular Tube	Hollow Section	1.20	2.000 – 2.200
1513	Rectangular Tube	Hollow Section	1.75	2.900 – 3.100
1551	Square Tube	Hollow Section	1.50	1.100 – 1.300
1552	Square Tube	Hollow Section	2.20	1.500 – 1.700
3202	Equal Angle	Angles	1.50	0.700 – 0.800
3203	Equal Angle	Angles	2.80	1.300 – 1.500
3106	Unequal Angle	Angles	2.15	1.400 – 1.600
3111	Unequal Angle	Angles	2.85	2.000 – 2.200
3301	Bulb Tee	Tee & G Section	1.00	0.485 – 0.525
1271	G Section	Tee & G Section	2.00	2.450 – 2.650

T = wall thickness. Weight range is for one 12 ft (3.66 m) length. To order, quote the section number and wall thickness.

Need a size that is not listed?

We are glad to discuss sizes and wall thicknesses beyond the ones in the catalogue. Tell us what the job needs.
