One bulb tee and one G section, each listed with its wall thickness and weight range.

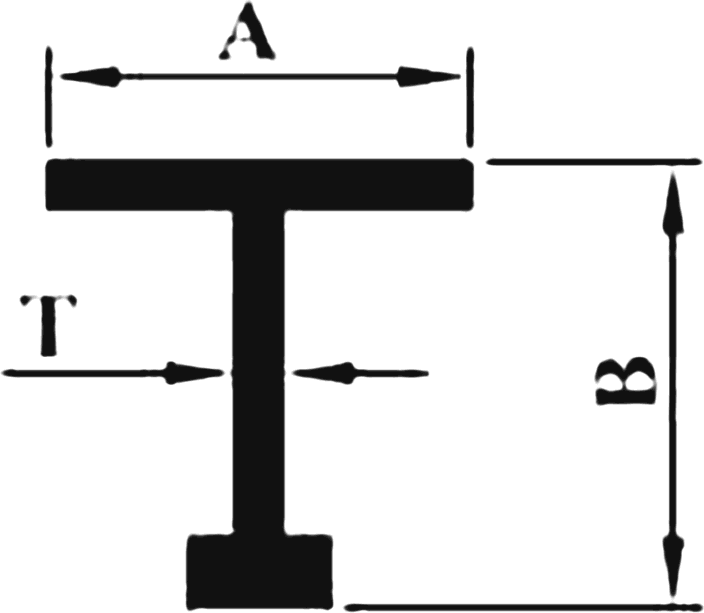

Section profile. All dimensions in mm.
| Section no. | A (mm) | B (mm) | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|---|---|
| 3301 | 25.40 | 25.40 | 1.00 | 0.485 – 0.525 |
A, B = overall dimensions. T = wall thickness. Weight range is for one 12 ft (3.66 m) length.

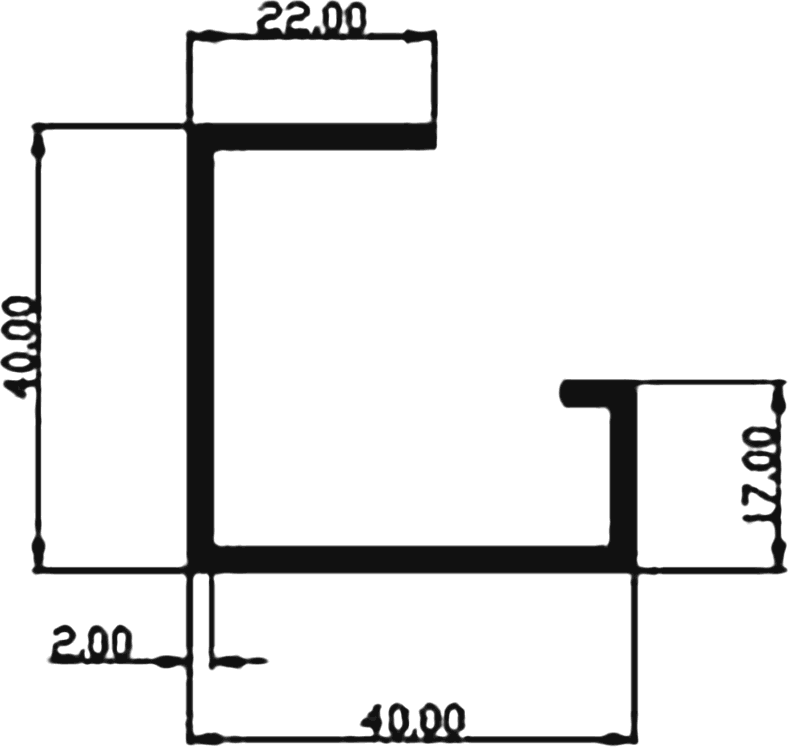

Enquire About This SectionSection profile. All dimensions in mm.
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1271 | 2.00 | 2.450 – 2.650 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionQuote the section number and wall thickness from the product page, or describe what you need. We reply with weight, availability and a delivery date.
