The complete set of sections for a sliding window: two-track and three-track tops and bottoms, A sections, H sections and interlocks. The 18 mm series is listed in one wall thickness per section. The 20 mm series offers each section in several, so the same window can be built lighter or heavier.
Section profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1801 | 0.80 | 1.700 – 1.900 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1821 | 0.80 | 2.100 – 2.300 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1811 | 0.80 | 2.250 – 2.450 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1831 | 0.80 | 2.300 – 2.500 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1841 | 0.90 | 1.100 – 1.300 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.

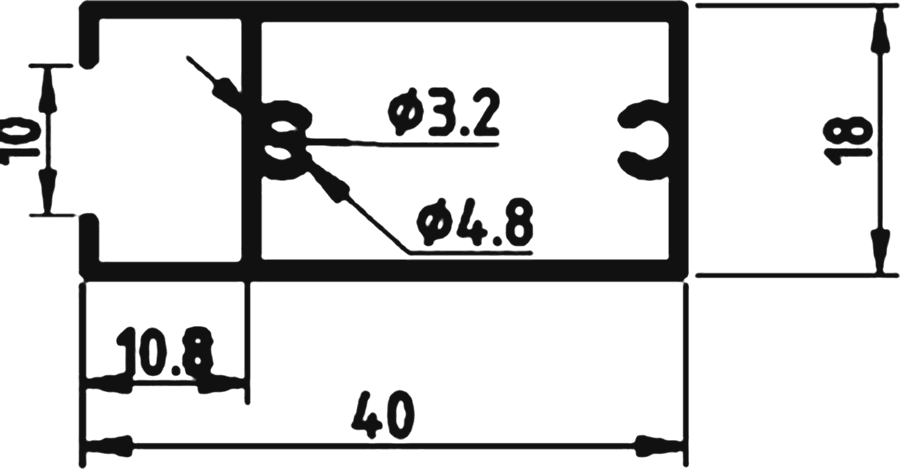

Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1851 | 0.90 | 1.100 – 1.300 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
18 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 1861 | 0.90 | 1.200 – 1.400 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.

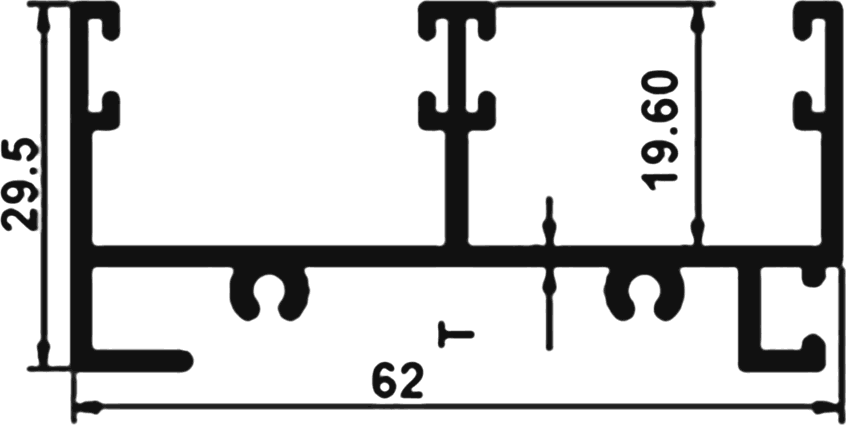

20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2001 | 0.80 | 1.700 – 1.900 |
| 2002 | 1.00 | 1.900 – 2.100 |
| 2003 | 1.15 | 2.200 – 2.400 |
| 2005 | 1.50 | 2.700 – 2.950 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.

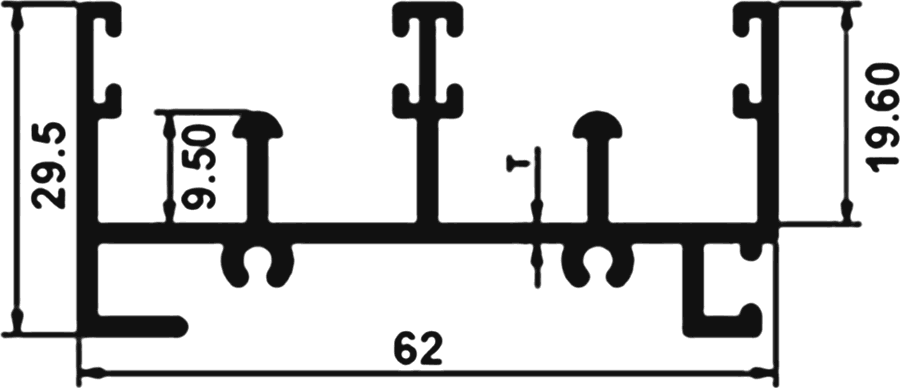

20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2021 | 0.85 | 2.000 – 2.200 |
| 2022 | 1.00 | 2.200 – 2.400 |
| 2023 | 1.15 | 2.500 – 2.700 |
| 2025 | 1.50 | 3.000 – 3.300 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.

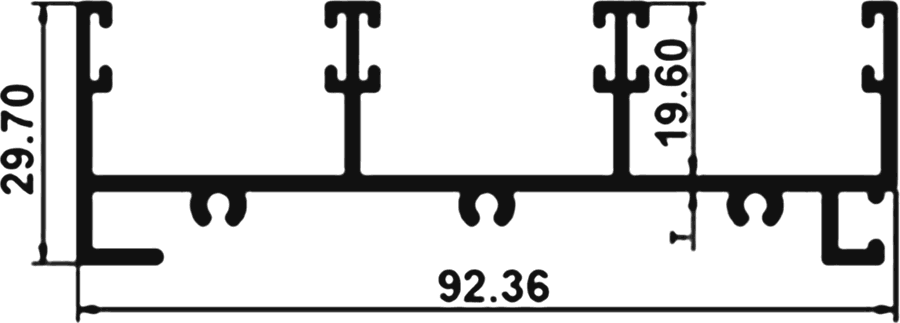

20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2011 | 0.85 | 2.400 – 2.600 |
| 2012 | 1.00 | 2.600 – 2.900 |
| 2013 | 1.15 | 3.000 – 3.300 |
| 2015 | 1.50 | 3.700 – 4.100 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.

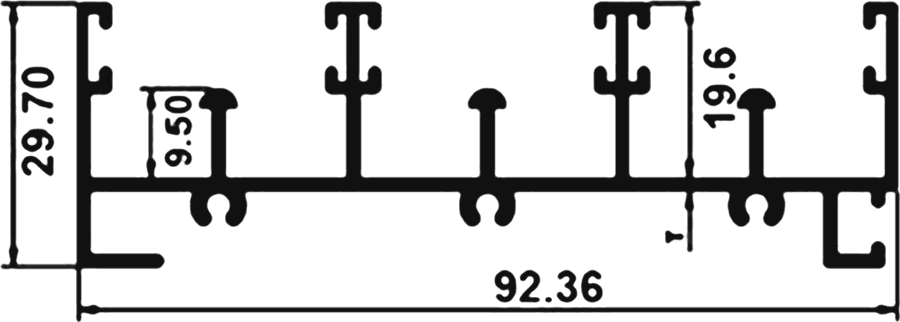

20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2031 | 0.85 | 2.800 – 3.100 |
| 2032 | 1.00 | 3.100 – 3.400 |
| 2033 | 1.15 | 3.400 – 3.800 |
| 2035 | 1.50 | 4.200 – 4.500 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2041 | 0.90 | 1.050 – 1.200 |
| 2042 | 1.10 | 1.200 – 1.400 |
| 2043 | 1.30 | 1.400 – 1.600 |
| 2044 | 1.40 | 1.600 – 1.800 |
| 2045 | 1.50 | 1.800 – 2.000 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2051 | 0.90 | 1.100 – 1.300 |
| 2052 | 1.10 | 1.250 – 1.500 |
| 2055 | 1.50 | 1.700 – 1.900 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionSection profile. All dimensions in mm.
20 mm series
| Section no. | T (mm) | Weight range (kg per 12 ft) |
|---|---|---|
| 2061 | 0.85 | 1.200 – 1.350 |
| 2062 | 1.00 | 1.400 – 1.600 |
| 2063 | 1.15 | 1.600 – 1.750 |
| 2065 | 1.50 | 2.100 – 2.300 |
T = wall thickness. Other dimensions as shown on the drawing, in mm. Weight range is for one 12 ft (3.66 m) length.
Enquire About This SectionQuote the section number and wall thickness from the product page, or describe what you need. We reply with weight, availability and a delivery date.
